List Editor -Numeric List

A Numeric list has a list of numerical values, and can optionally display a description for each value. This is the only list type available for number type properties in an iPropWiz configuration.

Click the button to view a video that demonstrates how to create and edit Numeric lists.

You can sort the list by clicking the header of the Order, Value, or Description column. Click a second time to reverse the sort order. You can reorder items in the list by using a common drag and drop workflow. See the Drag and Drop in Grids page for more information.

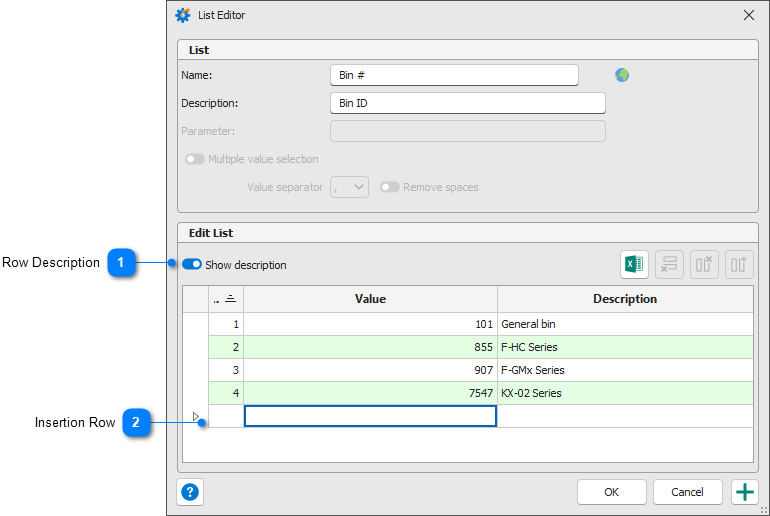

	Row Description
	Hide/show the description column in both the List Editor and when the list is shown in the iPropWiz Property Editor ( PE )..

	Insertion Row
	Enter new value and description information here. Press Enter to add the new row to the list. You must fill in a unique numeric value, the description can be left blank

Note: List additions and edits are saved to disk when you save the current configuration from the iPropWiz Configuration Editor.
