Configuration Editor - Configuration Options

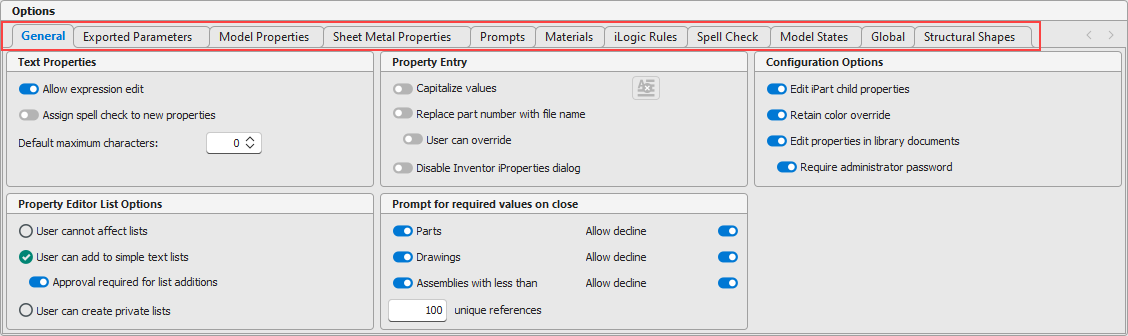

In the iPropWiz Configuration Editor ( CE ), you can set options for many of the operation in the selected iPropWiz configuration. In addition, settings that apply to all iPropWiz configuration are also accessed here. The tabbed Options group at the bottom of the CE is where you manage all options.

The various tabs are outlined in the following table.

Tab	Description
General	General options for the selected iPropWiz configuration.
Exported Parameters	Options for automatic formatting numeric properties exported as properties.
Model Properties	Options for formatting model extents, mass, area, and volume values as custom properties.
Sheet Metal Properties	Options for formatting sheet metal flat pattern extents, loop lengths, and area.
Prompts	Prompt options.
Materials	Selection of Autodesk Inventor asset libraries to be included in material lists in the selected configuration.
iLogic Rules	Manage application of iLogic rules when iPropWiz updates property values.
Model States	New - Inventor 2023+: Activate Model State property management and manage settings for the selected configuration.
Spell Check	Manage dictionaries and rules for spell checking.
Global	Global options that apply across all iPropWiz configurations.
Structural Shapes	New - Inventor 2023+: Setup automated custom shapes descriptions for structural shapes placed from Inventor's content center libraries.
