Configuration Editor - Options

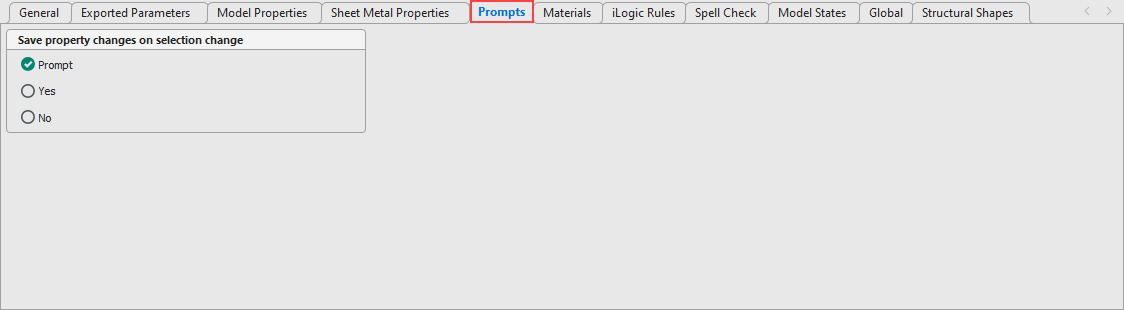

You control iPropWiz prompts from this options tab.

Save property changes on selection change

If the iPropWiz Property Editor is open and active, you can change the selected documents by one of the following methods.

Opening, editing in place, or switching to another Autodesk Inventor document window.

Selecting different occurrences (or clearing all selected occurrences) in an Autodesk Inventor assembly.

Selecting a sheet, view, or part within a view in an Autodesk Inventor drawing.

Changing the selection in the iPropWiz document browser in a drawing or assembly.

If a user has made changes to any property values in the iPropWiz Property Editor, but has not saved the changes (Apply button), the default action is to Prompt the user to save the changes to the affected documents before changing the selection. You can change the setting to one of the following.

Prompt: This is the default setting. The user is presented with a dialog asking if they want to save the changes before proceeding with the selection change.

Yes: The changes are applied without notifying the user and the selection change proceeds.

No: Any changes are abandoned and the selection change proceeds.

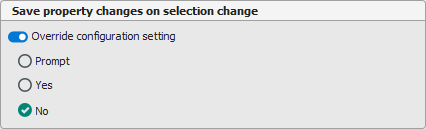

Note: The Save property changes on selection change setting can be overridden by users in the iPropWiz Property Editor Options dialog.
