The following Autodesk Inventor iProperties are restricted to numeric values only:
Estimated Cost (Project tab in iProperties dialog box).
Any custom iProperty created using the Number data type.
In the iPropWiz Property Editor, a numeric property is identified with a
glyph in the Data Type column. Note that this column can be hidden.
.png){kind=small}
If the numeric property is associated with a list, you can select a value from the list. If the property is not marked as From List Only, you can optionally enter a number in the cell.
.png)

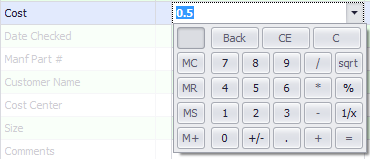

For a numeric property not associated with a list, the value cell may have a drop down arrow that opens a simple calculator. See the Property Editor Options page for information on activating the calculator for a numeric property.
.png)
