iPropWiz 7.21 ( Inventor 2021 )

Autodesk Inventor 2021 Specific enhancements.

iPropWiz is now more closely tied to one or more specific Autodesk Inventor releases. iPropWiz 7.19 versions work with Autodesk Inventor 2019 and 2020. iPropWiz 7.21 versions work with Autodesk Inventor 2021.

iPropWiz 7.21 adds a new Minimum bounding box extents option for parts . This option ensures the extents are extracted from the smallest box that contains the model, regardless of its orientation with respect the the document coordinate system. The minimum bounding box encompasses all visible solid bodies in the part document. In the iPropWiz Property Editor, the extents title bar changes when this option is in effect to indicated the extents are not tied to the document coordinate system.

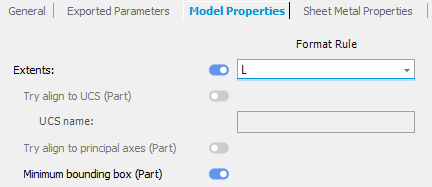

iPropWiz Configuration Editor setup for minimum bounding box extents.

iPropWiz Property Editor display of minimum bounding box

The three exported custom properties are named iPropWizExtentsDir1, iPropWizExtentsDir2, and iPropWizExtentsDir3. Note that these are new custom property names, not available in early versions of iPropWiz.
